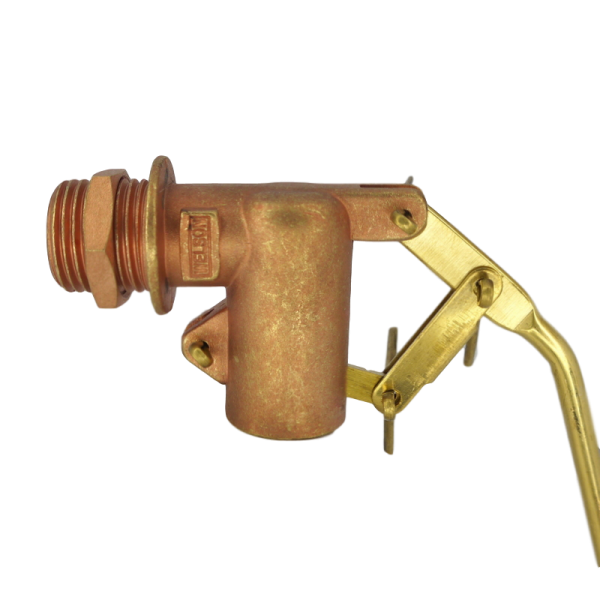

Brass Vertical Low Pressure Ball Float Valve

The 105BB float valve requires very little operating areas thanks to the compact and right-angle valve operating design.

Components of the valve can be easily removed for maintenances or replacement of parts.

Though the design is of economy and simplicity in mind, the valve is still manufactured to operate with reliability and effectiveness.

Service Medium: Water (Fresh)

Working Pressure: 0-2 BAR (Non-Shock at normal atmospheric temperature)

The available sizes for model 105BB float valve are 1/2″ and 3/4″.

Valves are manufactured with male BSP screwed joint inlet.

The valve main body, piston, and lever are manufactured from high-quality brass material.

Ball Float: Spherical Shape. Available material in Copper.

Float Lever: Integrated with the valve.  Mount to float by screwed joint.
