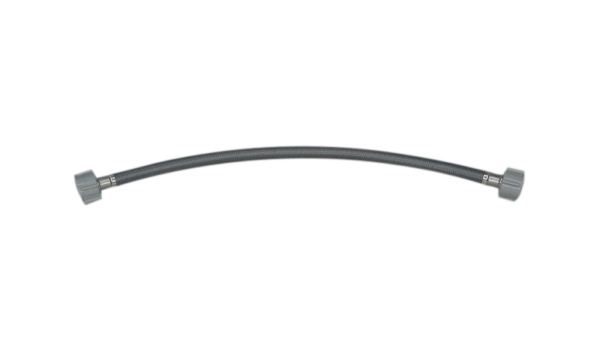

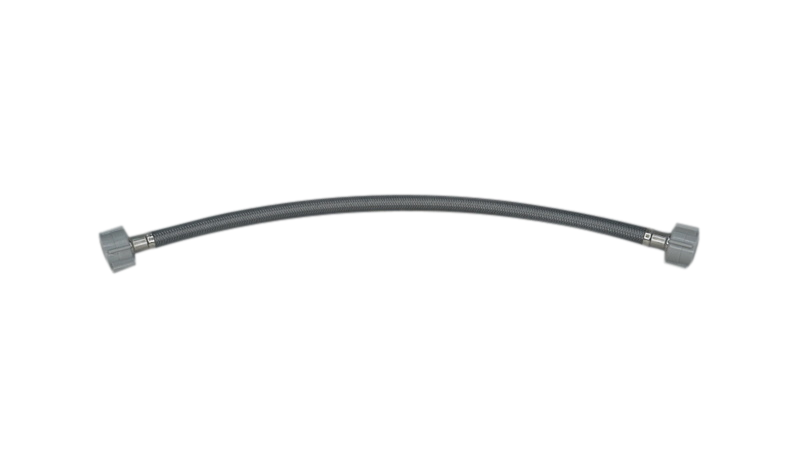

Nylon Braided Flexible Supply Hose
The Peterson NWH4 series grey nylon braided flexible hose is ideal for the connection of plumbing fixtures for home and light commercial installations.

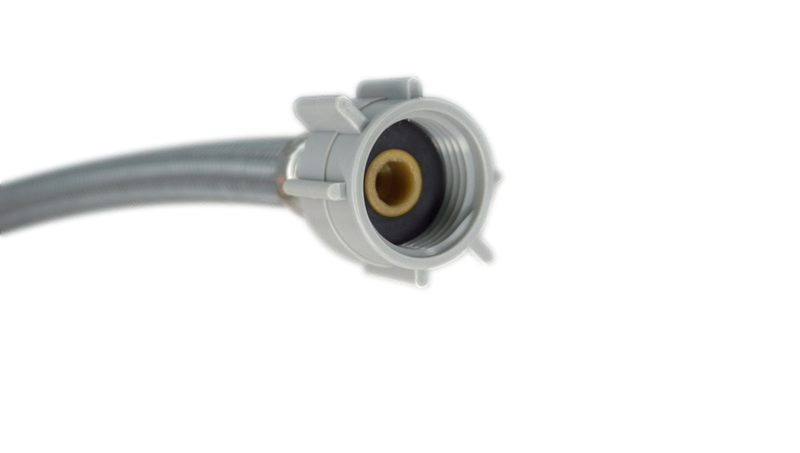

It is designed with a heavy-duty nylon locknut with textured grip surface. Together with a nylon inner shank makes this suitable for installation in a mildly abrasive environment.
Service Medium: Water (Seawater)
Working Pressure: 0-16 BAR (Non-Shock at atmospheric temperature)
The connection size available is 1/2”.
The standard length is 18”.
The hose is manufactured with EDPM inner hose with grey nylon braiding.
Sleeve of hose is made from high quality Gr. 316 stainless steel to BS EN 10088-1 1.4401.
The locknut of the hose made from HD grey nylon material.
The NWH4 hose has been tested and comply with BS EN 13618: 2016 in hydrostatic pressure and corrosion resistant requirement.
